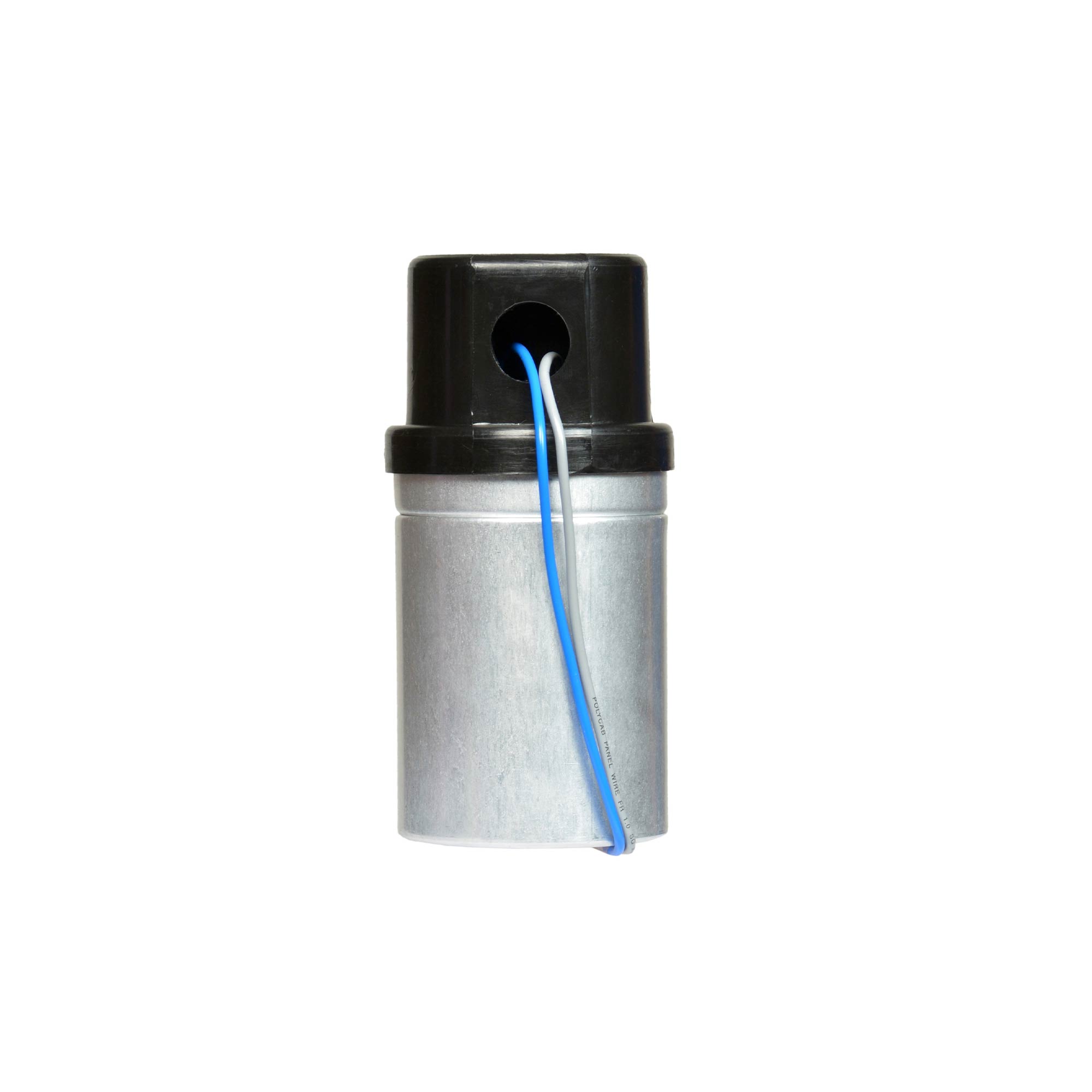

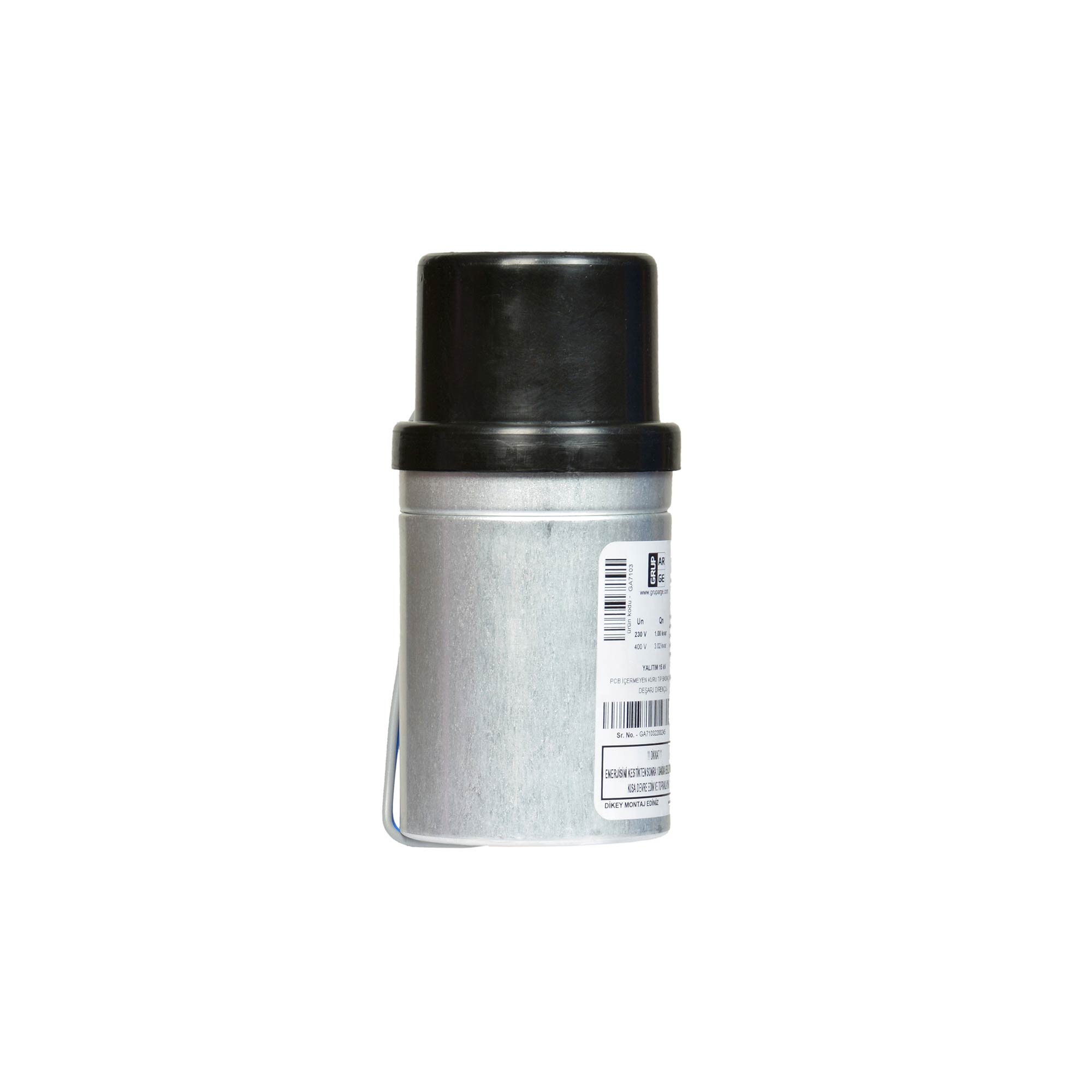

Capacitors
Power capacitors are used to meet the reactive power requirement in inductive characterized enterprises with electric motors, transformers, etc. devices. Power factor controllers meet the reactive needs of the enterprise by activating and deactivating the capacitors by means of contactors or semiconductor switching elements and ensure that the reactive rates remain below the desired rates.
General Features
- Non PCB, Biodegradable natural oil semi soft jelly filled
- Compact Cylindirical Al.can design,
- Explosion proof design (internal over pressure disconnector),
- Low losses due to advanced winding and zinc spray equipments,
- Finger touch proof terminal connector (Scope parallel connection),
- Metallised polypropylene wavy cut MPP (MKP) film design,
Technical Features
- Standards: IEC 60831-1, IEC 60831-2
- Nominal Voltages: 230 – 400 – 440 – 525 V AC
- Nominal Frequency: 50 – 60 Hz
- Dielectric Losses: < 0,2 W / kVAr
- Total Losses: < 0,4 W / kVAr
- Over Voltage: Un + %10, (8 hours/24 hours)
- Over Current: 1,5 x In
- Capacitance Tolerance: %-5 – %+10
- Life Expectancy: > 130 000 hours temperature level D (+55 ˚C)
> 150 000 hours temperature level C (+50 ˚C)
- Ambient Temperature: -40 / (+55) , D Class
Capacitors
Power capacitors are used to meet the reactive power requirement in inductive characterized enterprises with electric motors, transformers, etc. devices. Power factor controllers meet the reactive needs of the enterprise by activating and deactivating the capacitors by means of contactors or semiconductor switching elements and ensure that the reactive rates remain below the desired rates.
General Features
- Non PCB, Biodegradable natural oil semi soft jelly filled
- Compact Cylindirical Al.can design,
- Explosion proof design (internal over pressure disconnector),
- Low losses due to advanced winding and zinc spray equipments,
- Finger touch proof terminal connector (Scope parallel connection),
- Metallised polypropylene wavy cut MPP (MKP) film design,
Technical Features
- Standards: IEC 60831-1, IEC 60831-2
- Nominal Voltages: 230 – 400 – 440 – 525 V AC
- Nominal Frequency: 50 – 60 Hz
- Dielectric Losses: < 0,2 W / kVAr
- Total Losses: < 0,4 W / kVAr
- Over Voltage: Un + %10, (8 hours/24 hours)
- Over Current: 1,5 x In
- Capacitance Tolerance: %-5 – %+10
- Life Expectancy: > 130 000 hours temperature level D (+55 ˚C)
> 150 000 hours temperature level C (+50 ˚C)
- Ambient Temperature: -40 / (+55) , D Class
Product Detail
Single-Phase Capacitors (230 V)
| Product Code | Product Name | Product Description | Current@230V (A) |
Power@230V (kVAr) |
Power@400V (kVAr) |
Dimensions (mm) (Diameter-Length) |
|---|---|---|---|---|---|---|
| GA7101 | KND-M0.25 kVAr | 0.25 kVAr (230V) CAPACITOR | 1.08 | 0.25 | 0.75 | 50×90 |
| GA7102 | KND-M0.5 kVAr | 0.5 kVAr (230V) CAPACITOR | 2.17 | 0.5 | 1.5 | 50×100 |
| GA7103 | KND-M1.0 kVAr | 1.0 kVAr (230V) CAPACITOR | 4.34 | 1.0 | 3 | 65×100 |
| GA7104 | KND-M1.5 kVAr | 1.5 kVAr (230V) CAPACITOR | 6.52 | 1.5 | 4.5 | 65×130 |
| GA7105 | KND-M2.5 kVAr | 2.5 kVAr (230V) CAPACITOR | 10.86 | 2.5 | 7.5 | 75×195 |
| GA7106 | KND-M5.0 kVAr | 5.0 kVAr (230V) CAPACITOR | 21.73 | 5.0 | 15 | 90×205 |
| GA7107 | KND-M7.5 kVAr | 7.5 kVAr (230V) CAPACITOR | 32.06 | 7.5 | 22.5 | 100×245 |
| GA7108 | KND-M10.0 kVAr | 10.0 kVAr (230V) CAPACITOR | 43.47 | 10.0 | 30 | 117×245 |
Three-Phase Capacitors (400/440 V)
| Product Code | Product Name | Product Description | Current@230V (A) |
Power@230V (kVAr) |
Power@400V (kVAr) |
Dimensions (mm) (Diameter-Length) |
|---|---|---|---|---|---|---|
| GA7201 | KND-T0.5 kVAr | 0.5/0.61 kVAr (400V/440V) CAPACITOR | 0.72 | 0.5 | 0.61 | 50×125 |
| GA7202 | KND-T1.0 kVAr | 1.0/1.21 kVAr (400V/440V) CAPACITOR | 1.44 | 1.0 | 1.21 | 50×125 |
| GA7203 | KND-T1.5 kVAr | 1.5/1.82 kVAr (400V/440V) CAPACITOR | 2.16 | 1.5 | 1.82 | 50×125 |
| GA7204 | KND-T2.5 kVAr | 2.5/3.03 kVAr (400V/440V) CAPACITOR | 3.60 | 2.5 | 3.03 | 50×150 |
| GA7205 | KND-T5.0 kVAr | 5.0/6.05 kVAr (400V/440V) CAPACITOR | 7.21 | 5.0 | 6.05 | 75×140 |
| GA7206 | KND-T7.5 kVAr | 7.5/9.08 kVAr (400V/440V) CAPACITOR | 10.82 | 7.5 | 9.08 | 75×195 |
| GA7207 | KND-T10.0 kVAr | 10.0/12.1 kVAr (400V/440V) CAPACITOR | 14.43 | 10.0 | 12.10 | 90×205 |
| GA7208 | KND-T12.5 kVAr | 12.5/15.12 kVAr (400V/440V) CAPACITOR | 18.04 | 12.5 | 15.12 | 90×205 |
| GA7209 | KND-T15.0 kVAr | 15.0/18.15 kVAr (400V/440V) CAPACITOR | 21.65 | 15.0 | 18.15 | 90×245 |
| GA7210 | KND-T18.6 kVAr | 18.6/22.5 kVAr (400V/440V) CAPACITOR | 26.87 | 18.6 | 22.50 | 100×245 |
| GA7211 | KND-T20.0 kVAr | 20.0/24.2 kVAr (400V/440V) CAPACITOR | 28.86 | 20.0 | 24.20 | 100×245 |
| GA7212 | KND-T23.2 kVAr | 23.2/28.1 kVAr (400V/440V) CAPACITOR | 33.5 | 23.22 | 28.10 | 117×245 |
| GA7213 | KND-T25.0 kVAr | 25.0/30.25 kVAr (400V/440V) CAPACITOR | 36.08 | 25.0 | 30.25 | 117×245 |
| GA7214 | KND-T30.0 kVAr | 30.0/36.3 kVAr (400V/440V) CAPACITOR | 43.30 | 30.0 | 36.30 | 117×245 |
Three-Phase Capacitors (525 V)
| Product Code | Product Name | Product Description | Current@525V (A) |
Power@480V (kVAr) |
Power@525V (kVAr) |
Dimensions (mm) (Diameter-Length) |
|---|---|---|---|---|---|---|
| GA7301 | KND B5.0 | 5.0 kVAr 525V CAPACITOR | 5.50 | 4.16 | 5.0 | 75×140 |
| GA7302 | KND B7.5 | 7.5 kVAr 525V CAPACITOR | 8.25 | 6.25 | 7.5 | 75×195 |
| GA7303 | KND B10.0 | 10.0 kVAr 525V CAPACITOR | 11.00 | 8.3 | 10.0 | 85 x 205 |
| GA7304 | KND B12.5 | 12.5 kVAr 525V CAPACITOR | 13.75 | 10.4 | 12.5 | 90×205 |
| GA7305 | KND B15.0 | 15.0 kVAr 525V CAPACITOR | 16.50 | 12.5 | 15.0 | 90×245 |
| GA7306 | KND B20.0 | 20.0 kVAr 525V CAPACITOR | 21.99 | 16.7 | 20.0 | 100 x 245 |
| GA7307 | KND B25.0 | 25.0 kVAr 525V CAPACITOR | 27.49 | 20.9 | 25.0 | 117 x 245 |
| GA7308 | KND B30.0 | 30.0 kVAr 525V CAPACITOR | 32.99 | 25.0 | 30.0 | 117 x 245 |
| GA7309 | KND B40.0 | 40.0 kVAr 525V CAPACITOR | 44.00 | 33.3 | 40.0 | 136 x 243 |
