SVC Enabled Power Factor Controllers

RKRS and Smart SVC-Enabled Power Factor Controllers, which activate inductive loads in an adjustable way, should be used to meet the reactive energy requirement of the enterprises where the loads are variable and phase distributions are not equal and capacitive load generating device equipment is predominant. The magnitude of the inductive load driver and single-phase shunt reactor in the SVC system, which is planned to be used in the enterprise, varies according to the inductive load requirement and load imbalance of the enterprise.



Our RKR Power Factor Controllers offered with 12, 18 and 24 step options and Smart Power Factor Controllers offered with 12 and 18 step options are sufficient for enterprises where loads are partially more stable.



RKRS and Smart SVCEnabled Power Factor Controllers are used in enterprises where loads are variable and phase distributions are not equal, and capacitive load generating machinery equipment is predominant.

Smart SVC-Enabled Power Factor Controllers

  • 3mA detection current
  • High sensitivity power measurement
  • Power Flow Graph showing reactive power profile
  • Extend step life with co-aging
  • Maintain current step values with automatic step test

RKR SVC-Enabled Power Factor Controllers

  • Uninterrupted safe compensation with detection of current and voltage connection faults thanks to three-phase supply technology
  • Easy configuration of the relay with Installation Assistant
  • Automatic current-voltage matching at installation
  • Installation and compensation option with single current transformer
  • To be able to detect that C.T.’s create a cycle on the secondary side during installation
  • 3.5-inch TFT colorful display with 320×480 resolution
  • Measurement and display up to 63rd harmonic for current and voltage
  • Customization of customer names and information on the screen
  • Timed and non-timed target Cos(φ) setting and warning
  • Slim ergonomic design with a depth of 43 mm allowing for narrow enclosure design
  • Secure C.T. secondary installation with constant current terminal input that allows the use of 4 mm² cables for long distances
  • Ability to measure and compensate accurately with the correction ratios of each phase even if all 3 current transformers have different conversion ratios
  • Step synthesis with the help of Reactive Power Profile
  • SVC steps with 10,000 steps resolution
  • Rich event/warning/error codes with date and time signature
  • Over and under voltage, over harmonic / temperature protection and warning messages in compensation



With its features, it produces economical and permanent solutions for your business.

SVC Enabled Power Factor Controllers

RKRS and Smart SVC-Enabled Power Factor Controllers, which activate inductive loads in an adjustable way, should be used to meet the reactive energy requirement of the enterprises where the loads are variable and phase distributions are not equal and capacitive load generating device equipment is predominant. The magnitude of the inductive load driver and single-phase shunt reactor in the SVC system, which is planned to be used in the enterprise, varies according to the inductive load requirement and load imbalance of the enterprise.



Our RKR Power Factor Controllers offered with 12, 18 and 24 step options and Smart Power Factor Controllers offered with 12 and 18 step options are sufficient for enterprises where loads are partially more stable.



RKRS and Smart SVCEnabled Power Factor Controllers are used in enterprises where loads are variable and phase distributions are not equal, and capacitive load generating machinery equipment is predominant.

Smart SVC-Enabled Power Factor Controllers

  • 3mA detection current
  • High sensitivity power measurement
  • Power Flow Graph showing reactive power profile
  • Extend step life with co-aging
  • Maintain current step values with automatic step test

RKR SVC-Enabled Power Factor Controllers

  • Uninterrupted safe compensation with detection of current and voltage connection faults thanks to three-phase supply technology
  • Easy configuration of the relay with Installation Assistant
  • Automatic current-voltage matching at installation
  • Installation and compensation option with single current transformer
  • To be able to detect that C.T.’s create a cycle on the secondary side during installation
  • 3.5-inch TFT colorful display with 320×480 resolution
  • Measurement and display up to 63rd harmonic for current and voltage
  • Customization of customer names and information on the screen
  • Timed and non-timed target Cos(φ) setting and warning
  • Slim ergonomic design with a depth of 43 mm allowing for narrow enclosure design
  • Secure C.T. secondary installation with constant current terminal input that allows the use of 4 mm² cables for long distances
  • Ability to measure and compensate accurately with the correction ratios of each phase even if all 3 current transformers have different conversion ratios
  • Step synthesis with the help of Reactive Power Profile
  • SVC steps with 10,000 steps resolution
  • Rich event/warning/error codes with date and time signature
  • Over and under voltage, over harmonic / temperature protection and warning messages in compensation



With its features, it produces economical and permanent solutions for your business.

Product Detail

Product Code Product Name Product Description Step Count Character LCD Graphic LCD SVC Reactive Power Profile RS-485 Communication TSC

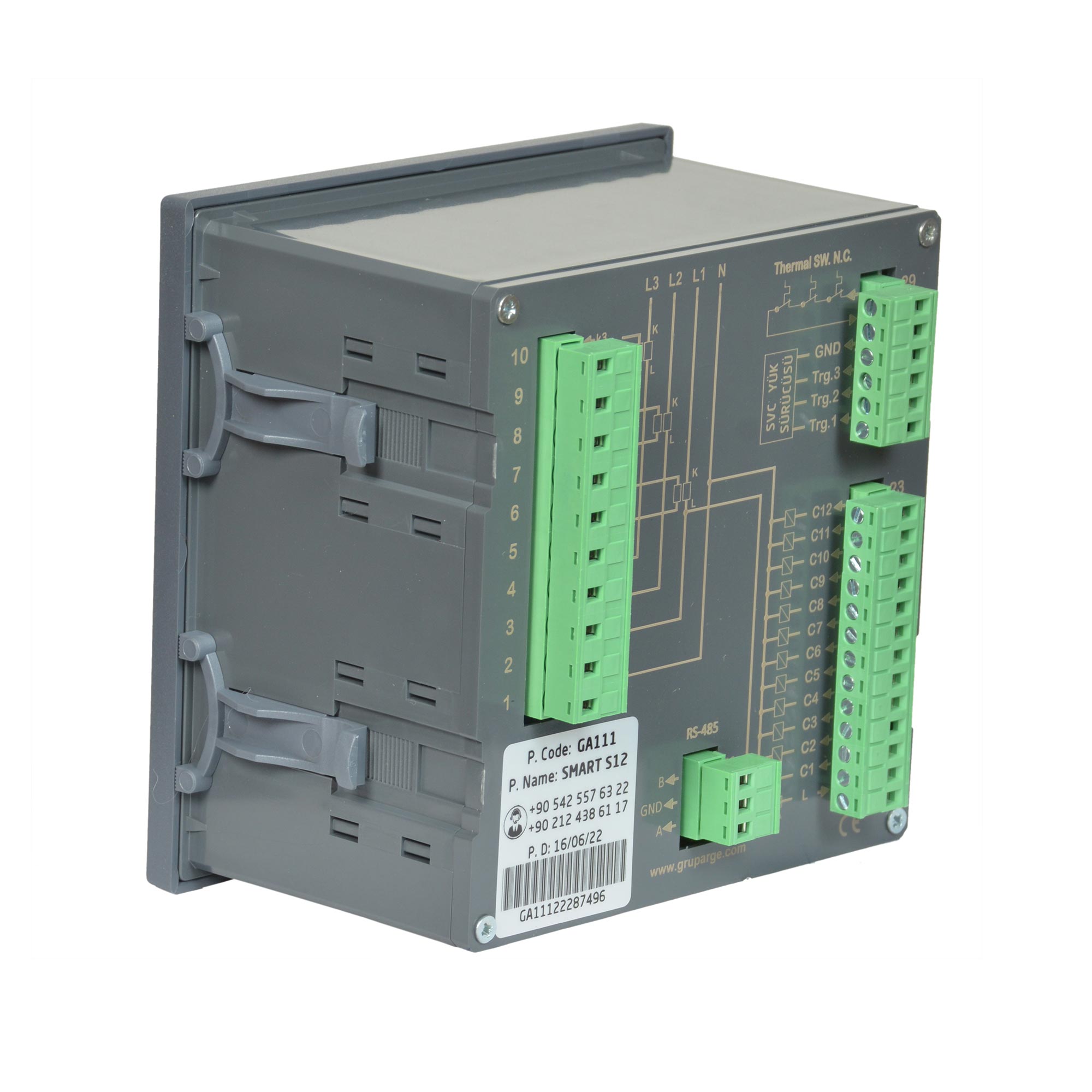

GA 111 SMART S12 12 STEPS SMART SVC POWER FACTOR CONTROLLER 12+SVC + + + +
GA 121 SMART S18 18 STEPS SMART SVC POWER FACTOR CONTROLLER 18+SVC + + + +
GA 120 SMART S18-T 18 STEPS SMART SVC POWER FACTOR CONTROLLER WITH THYRISTOR OUTPUT 18+SVC + + + +
Product Code Product Name Product Description Step Count 7-Segment (3×4) Graphic LCD TFT Color Display SVC Reactive Power Profile RS-485 Comminucation
GA 1201 RKR S12 12 STEPS SVC POWER FACTOR CONTROLLER 12+SVC + + + +
GA 1202 RKR S18 18 STEPS SVC POWER FACTOR CONTROLLER 18+SVC + + + +
GA 1203 RKR S18P SVC POWER FACTOR CONTROLLER (ADDITIONAL STEPS OPTION) 18P+SVC + + + +

Standard Features in our Power Factor Controllers: 3 Phase Measurement, MonoPhase / DiPhase / TriPhase Capacitor / Reactor Recognition, Cos Phi, Active Power, 3 mA Sensing Current, Reactive Power, Active Energy, Reactive Energy, THD-I%
